When working with Playwright Java automation testing, one of the most powerful ways to identify elements on a web page is by using the Playwright Java XPath Locator. XPath enables testers to navigate the DOM’s structure and locate elements based on their attributes, hierarchy, or text content. This makes it especially useful when dealing with complex applications where simple locators might fail.
XPath is important in Playwright Java testing because it provides flexibility in element identification. While CSS selectors are faster in many cases, XPath stands out when you need to locate elements dynamically, handle changing attributes, or identify nested components. For example, locating elements by XPath in Playwright Java enables easy interaction with forms, dropdowns, and deeply structured HTML layouts.
It’s also worth noting that XPath is just one option among various Playwright Java selectors. Other locator strategies, such as getByRole, getByText, or CSS selectors, are often combined with XPath to create reliable test scripts. Understanding when to use XPath and how it fits into broader Playwright Java locator strategies is key to building robust and maintainable automation frameworks.
- What is XPath in Playwright Java?
- Syntax of XPath in Playwright Java
- Locating Elements by XPath in Playwright Java
- Playwright Java Dynamic XPath
- Playwright Java XPath Locator Strategies
- Playwright Java XPath Example: Complete Test
- Step-by-step explanation (how the script uses Playwright Java XPath Locator)
- 1. Open the local practice page (update your file path)
- 2. Enable and fill the User Email field (handle readonly)
- 3. Fill the password field using attribute-based XPath
- 4. Handle duplicate Company inputs with .nth()
- 5. Select the Mobile Number input by a unique attribute
- 6. Click Submit and verify table content
- Why does this demonstrate solid Playwright Java XPath strategies?
- Step-by-step explanation (how the script uses Playwright Java XPath Locator)
- Best Practices for Playwright Java XPath Locator
- 1. Prefer Relative XPath Over Absolute XPath
- 2. Use Unique Attributes Wherever Possible
- 3. Combine Multiple Attributes for Precision
- 4. Avoid Index-Based Locators Unless Necessary
- 5. Handle Dynamic Elements with Functions
- 6. Keep XPath Readable and Documented
- 7. Prefer Playwright Native Locators When Possible
- What’s Next
- Conclusion: Mastering Playwright Java XPath Locator
What is XPath in Playwright Java?
In Playwright Java, XPath is a powerful locator strategy used to identify elements within the Document Object Model (DOM). The Playwright Java XPath Locator works by navigating the page’s HTML structure and selecting nodes based on attributes, hierarchy, or visible text. This makes XPath especially valuable in Playwright Java element identification, as it allows testers to interact with even the most complex or dynamic components on a webpage.
XPath helps in locating elements by XPath in Playwright Java when other strategies like IDs or class names are unreliable. For example, in modern web applications, attributes often change dynamically. In such cases, using Playwright Java dynamic XPath enables testers to locate elements based on partial matches, text values, or multiple conditions. This flexibility ensures that automation scripts remain stable, even when the UI evolves.
It’s also important to understand the difference between CSS selectors and XPath selectors in Playwright Java. CSS selectors are typically faster and more readable, making them a good choice for simple and stable elements. On the other hand, Playwright Java XPath shines when dealing with complex hierarchies, parent-child relationships, or elements without unique identifiers. In practice, combining both Playwright Java selectors, CSS for speed, and XPath for precision offers a balanced approach to robust automation.
Syntax of XPath in Playwright Java
The general syntax for locating an element using XPath in Playwright Java looks like this:
page.locator("//tagname[@attribute='value']");Here,
- //: Searches the entire DOM.
- tagname: The HTML tag (e.g., input, button).
- @attribute=’value’: Matches an element based on its attribute.
For example:
page.locator("//input[@id='username']");This expression finds the input element with the id value username.
Locating Elements by XPath in Playwright Java
In Playwright Java automation testing, there are two main approaches for writing XPath expressions: absolute XPath and relative XPath. Both can be used, but they serve different purposes.
Using Absolute XPath vs Relative XPath
| Feature | Absolute XPath | Relative XPath |
| Definition | Full path from the root node to the element. | Starts from anywhere in the DOM using //. |
| Example | /html/body/div[1]/form/input[1] | //input[@id=’username’] |
| Reliability | Fragile. Breaks if the DOM structure changes. | More stable.Less affected by layout changes. |
| Ease of Use | Harder to maintain in long pages. | Easier to write, read, and maintain. |
| Best For | Static pages with little or no structure change. | Dynamic pages and robust test automation. |
In practice, locating elements by relative XPath in Playwright Java is much easier since it adapts better to dynamic and changing web pages.
Examples of XPath in Playwright Java
Here are some common XPath patterns used in Playwright Java to find elements using XPath:
// Locate element by attribute
page.locator("//input[@name='email']");
// Locate element by text
page.locator("//button[text()='Submit']");
// Locate element using contains()
page.locator("//div[contains(@class, 'error-message')]");
// Locate element by hierarchy
page.locator("//form[@id='loginForm']//input[@type='password']");These approaches highlight how XPath strategies can make scripts more flexible.
Playwright Java Dynamic XPath
What is Dynamic XPath and When to Use It
Dynamic XPath is used when an element’s attributes or position in the DOM changes frequently. For example, IDs or class names may be generated dynamically by the application, making static locators unreliable. In such cases, using Playwright Java dynamic XPath allows testers to locate elements based on partial matches, text content, or flexible patterns.
Dynamic XPath is most useful when:
- Elements have changing or auto-generated attributes.
- There are multiple elements with similar properties.
- You need to locate elements using visible text or hierarchical relationships.
Examples of Handling Changing Attributes with Dynamic XPath
Here are some practical examples of locating elements by XPath in Playwright Java with dynamic attributes:
// Using contains() to handle dynamic class names
page.locator("//button[contains(@class, 'submit-btn')]");
// Using starts-with() for IDs that change dynamically
page.locator("//input[starts-with(@id, 'user_')]");
// Using text() to locate button by its label
page.locator("//button[text()='Continue']");
// Combining multiple attributes
page.locator("//input[contains(@name, 'email') and @type='text']");These approaches ensure that even if attributes are partially dynamic, your script can still identify the correct element.

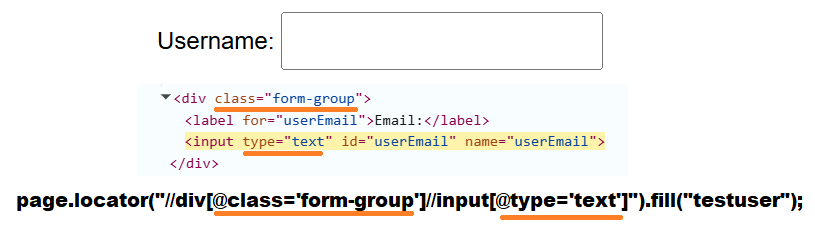

Nested Elements with Advanced XPath
In real-world applications, elements are often deeply nested inside parent containers. With Playwright Java XPath, you can use hierarchical relationships to locate them.
// Locate password field inside a form
page.locator("//form[@id='loginForm']//input[@type='password']");
// Locate a link inside a navigation bar
page.locator("//nav[@class='navbar']//a[text()='Profile']");
// Locate a button inside a specific div
page.locator("//div[@class='modal']//button[text()='Close']");Playwright Java XPath Locator Strategies
Choosing the right locator strategy is one of the most important steps in Playwright Java automation testing. While the Playwright Java XPath Locator is powerful, it works best when combined with other locator techniques. A smart mix of strategies ensures more reliable and maintainable test scripts.
Combining XPath with Other Playwright Java Selectors
Although XPath is flexible, sometimes it’s best to combine it with other Playwright Java selectors like getByRole, getByText, or CSS selectors. For example:
// XPath for password field, getByRole for login button
page.locator("//input[@type='password']").fill("mypassword");
page.getByRole(AriaRole.BUTTON, new Page.GetByRoleOptions().setName("Login")).click();This approach makes your scripts more readable and prevents over-reliance on complex XPath expressions.
Using Multiple Attributes for Better Element Identification
For stable Playwright Java element identification, combining multiple attributes in XPath is a good strategy. Instead of depending on a single attribute, you can target elements more precisely:
// Combine multiple attributes for accuracy
page.locator("//input[@type='text' and contains(@name,'user')]");
// Locate button with multiple conditions
page.locator("//button[@class='btn' and text()='Submit']");By adding multiple conditions, you reduce the risk of selecting the wrong element when similar elements exist on the page.
When to Use XPath vs. Other Locator Strategies
| Locator Strategy | Pros | Cons |
| XPath | – Handles dynamic attributes – Can locate nested/complex elements – Supports text-based identification | – More complex to write – Slower than CSS selectors – Can become brittle if the DOM changes |
| CSS Selectors | – Fast and efficient – Easy to read and maintain – Widely supported | – Cannot locate elements by text – Limited for deeply nested structures |
| getByRole / getByLabel | – Improves accessibility testing – More readable and semantic | – Not always available on poorly designed web apps |
| Other Playwright Locators | – Flexible options (getByText, getByPlaceholder) – Often simpler than XPath | – May not cover complex DOM or dynamic elements |
In short, locating elements by XPath in Playwright Java is a powerful strategy, but the best practice is to use XPath only when other locator strategies are insufficient. By combining XPath with CSS or role-based locators, you can achieve both reliability and maintainability in your test scripts.
Playwright Java XPath Example: Complete Test
Below is a full, working Playwright Java XPath Locator test that uses a local Locators.html file you can download and practice with. This file contains sample form fields and a Users Table, allowing you to safely experiment with Playwright Java testing XPath techniques, including labels, table lookup, and flexible XPaths. The test fills form fields, clicks Submit, and verifies a value in the Users Table on the local practice page.
package com.example.tests;
import com.microsoft.playwright.*;
import com.microsoft.playwright.options.LoadState;
public class PlaywrightXPathPracticeTest {
public static void main(String[] args) {
try (Playwright playwright = Playwright.create()) {
Browser browser = playwright.chromium().launch(new BrowserType.LaunchOptions().setHeadless(false));
Page page = browser.newPage();
// 1) Open Local HTML Practice Page
page.navigate("file:///D:/Locators.html"); //Need to modify as per your actual path.
page.waitForLoadState(LoadState.DOMCONTENTLOADED);
// 2) Locate the User Email field by XPath
Locator userEmail = page.locator("//*[normalize-space(text())='User Email']/following::input[1]");
// First click/focus to trigger JS that removes readonly.
userEmail.click();
// Now fill with value
userEmail.fill("testuser@example.com");
// 3) Locate the password field (type='password') and fill it
Locator password = page.locator("//input[@type='password' or contains(@id,'pass')]");
password.fill("P@ssw0rd!");
// 4) Fill additional fields (Company, Mobile Number) using text-based relative XPath
Locator companyInput = page.locator("//*[normalize-space(text())='Company']/following::input").nth(0);
companyInput.fill("OpenAI");
Locator mobileInput = page.locator("//input[@placeholder='Enter your mobile number']");
mobileInput.first().fill("123456");
// 5) Click the Submit control (match any element that has the visible text 'Submit')
page.locator("//*[normalize-space()='Submit']").click();
// 6) Verify that the Users Table contains an existing user (e.g. 'Liam.Brown' on the practice page)
Locator userCell = page.locator("//table//td[normalize-space()='Liam.Brown']");
if (userCell.count() > 0) {
System.out.println("Found user Liam.Brown in the Users Table (Practice practice page).");
} else {
System.out.println("Liam.Brown not found — check page state or adjust XPath.");
}
browser.close();
}
}
}Step-by-step explanation (how the script uses Playwright Java XPath Locator)
1. Open the local practice page (update your file path)
The script opens a local HTML file (File Download Link) that contains sample form fields and a Users Table. Replace the example path with the actual path on your machine, for example:
page.navigate("file:///C:/path/to/playwright-xpath-practice.html"); // ← update this pathUsing a local file ensures the test is stable and independent of third-party site changes while you practice Playwright Java testing XPath techniques.
2. Enable and fill the User Email field (handle readonly)
The local input is initially read-only and becomes editable only after a focus/click event. The script locates the field using a text-relative XPath and clicks it first to trigger the onfocus handler, then fills it. This is a common pattern when doing Playwright Java element identification on fields guarded by JavaScript.
Locator userEmail = page.locator("//*[normalize-space(text())='User Email']/following::input[1]");
userEmail.click(); // triggers JS to remove readonly
userEmail.fill("testuser@example.com");
3. Fill the password field using attribute-based XPath
For the password field, the locator mixes direct attribute checks and partial matching (helps with dynamic IDs):
Locator password = page.locator("//input[@type='password' or contains(@id,'pass')]");
password.fill("P@ssw0rd!");
This demonstrates Playwright Java dynamic XPath usage for resilient locators.
4. Handle duplicate Company inputs with .nth()
The local page intentionally includes several Company inputs. Playwright’s strict mode requires a single match, so the script narrows the locator using .nth(0) to target the first occurrence. This is part of sensible Playwright Java locator strategies when identical elements exist.
Locator companyInput = page.locator("//*[normalize-space(text())='Company']/following::input").nth(0);
companyInput.fill("OpenAI");
5. Select the Mobile Number input by a unique attribute
Instead of a generic following::input, the script locates the mobile field by a unique attribute (placeholder) and uses .first() to be safe if multiples exist:
Locator mobileInput = page.locator("//input[@placeholder='Enter your mobile number']");
mobileInput.first().fill("123456");
This reduces strict mode violations and shows best practices for locating elements by XPath in Playwright Java.
6. Click Submit and verify table content
The script clicks the visible Submit control using a text-based XPath, then verifies a value in the Users Table via XPath (common in automation tests):
page.locator("//*[normalize-space()='Submit']").click();
Locator userCell = page.locator("//table//td[normalize-space()='Liam.Brown']");
if (userCell.count() > 0) { /* success */ }This final step demonstrates how to combine interactions and assertions using the Playwright Java XPath Locator for end-to-end validation.
Why does this demonstrate solid Playwright Java XPath strategies?
- It shows combining text-based and attribute-based XPath for resilient locators (normalize-space(), contains(), and following::).
- Uses relative XPath patterns (preferred over brittle absolute XPaths) for maintainability.
- It demonstrates a real validation step that uses XPath to locate content inside a table.
This example uses real elements from the local practice page so you can copy, run, and tweak the XPaths for learning and for building robust Playwright tests.
Best Practices for Playwright Java XPath Locator
When working with XPath locators, writing stable and maintainable automation scripts is crucial. XPath is powerful, but if used carelessly, it can lead to flaky tests that frequently break. Below are some best practices to follow:
1. Prefer Relative XPath Over Absolute XPath
Absolute XPath (starting from /html/body/…) is fragile because even small UI changes can break it. Instead, use a relative XPath (//tag[@attribute=’value’]) that focuses on unique identifiers.
// Avoid (absolute)
page.locator("/html/body/div[1]/form/input[2]").fill("data");
// Prefer (relative)
page.locator("//input[@id='username']").fill("data");2. Use Unique Attributes Wherever Possible
Leverage stable attributes such as id, name, type, or placeholder in your XPath. This reduces ambiguity and avoids strict mode violations.
page.locator("//input[@placeholder='Enter your mobile number']").fill("123025");3. Combine Multiple Attributes for Precision
If no single attribute is unique, combine multiple attributes for a more reliable locator.
page.locator("//input[@type='text' and @name='company']").fill("OpenAI");4. Avoid Index-Based Locators Unless Necessary
Locators like (//input)[3] are brittle because they depend on DOM order. Use .nth() only if there’s no other stable way, and document why it’s needed.
// Less stable
page.locator("(//input)[3]").fill("value");
// Better
page.locator("//label[normalize-space()='Company']/following::input[1]").fill("value");5. Handle Dynamic Elements with Functions
When attributes change dynamically, use XPath functions such as contains(), starts-with(), or normalize-space().
page.locator("//input[contains(@id,'pass')]").fill("P@ssw0rd!");6. Keep XPath Readable and Documented
For long-term maintainability, keep XPath expressions clear and consistent, and add comments in your code. This makes it easier for teams to update locators when UI changes occur.
7. Prefer Playwright Native Locators When Possible
While XPath is powerful, Playwright provides rich built-in locators (getByRole, getByLabel, getByPlaceholder). Use XPath mainly when other strategies are not sufficient.
Following these Playwright Java XPath best practices will help you create stable, maintainable automation scripts and reduce test failures caused by brittle locators.
What’s Next
Now that you have learned how to use XPath locators in Playwright Java, it is a good idea to explore another powerful way to find elements using CSS selectors.
Check out this detailed guide:
Playwright Java CSS Selectors
You will learn how to locate elements using CSS selectors, understand their syntax, and see real examples to make your Playwright automation more efficient.
Conclusion: Mastering Playwright Java XPath Locator
In this guide, we explored how to use the Playwright Java XPath locator effectively for automation testing. You learned different strategies for writing XPath, including relative paths, combining attributes, and handling dynamic elements with functions like contains() and normalize-space().
We also highlighted dynamic and advanced XPath usage, which is essential for dealing with complex DOM structures and applications where attributes change frequently. By applying these techniques, you can build more resilient scripts that adapt to UI changes.
Additionally, we covered best practices for Playwright Java XPath locators, such as avoiding brittle absolute paths, leveraging unique attributes, and preferring native Playwright locators whenever possible. These approaches ensure your test scripts remain stable and easy to maintain in the long run.
